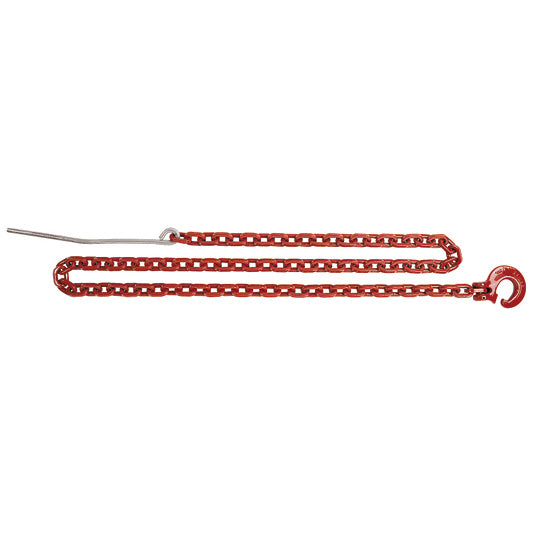

VKF D-KSR Choker Chain
High-tensile tested Chain VKF in grade 8. The clevis choker hook KSR makes it easy to form and open choker slings. Allows easily passage of the chain underneath the trunks with the slip through pin D. Shortening possibility thanks to the sliding shoe GB.
| Code |
Tensile force * [daN] |
Tensile force [daN] |
Chain diameter [mm] |
Length ** [mm] |
Weight [kg/pc.] |
| VKF 7 D-KSR 1500 |
3250 |
2600 |
7 |
1500 |
2.30 |
| VKF 7 D-KSR 2000 | 3250 |
2600 |
7 |
2000 |
2.90 |
| VKF 7 D-KSR 2500 | 3250 |
2600 |
7 |
2500 |
3.50 |
| VKF 8 D-KSR 2000 | 4500 |
3600 |
8 |
2000 |
3.80 |
| VKF 8 D-KSR 2500 | 4500 | 3600 | 8 | 2500 | 4.60 |
* Application difficulties are not considerd e.g. shear effect in the GB or KSR.
** Length without slip trough pin
|
