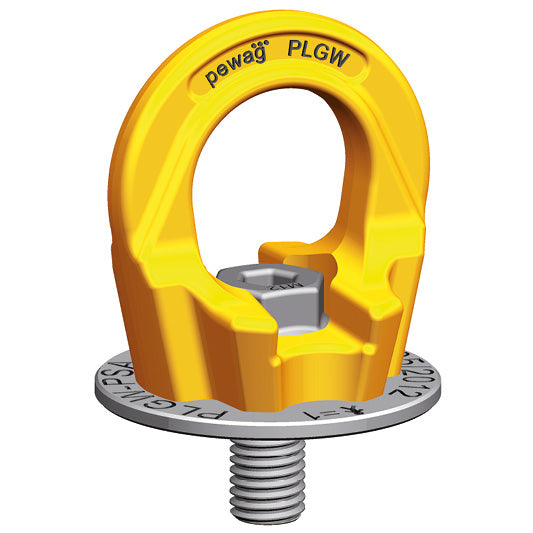

Pewag Fall Arrest Eyebolt Anchors (PLGW-PSA)
The Pewag PLGW-PSA fall arrest eyebolt is the point of the anchorage system on which personal fall protection equipment can be fastened. It was designed and certified as per the high safety requirements for personal protective equipment according to the EC-Regulations 89/686/EEC; and meets the new EN795:2012 (1 person) and CEN/TS 16415 (2 persons) directives respectively. PLGW-PSA anchor points also conform to the requirements of BS8610:2017*.
For more detailed information, please consult the operating instructions which are available on request.
*Excludes salt spray test as at May 2018.
The PLGW-PSA fall arrest anchor point is available in "Basic" and "Supreme" versions:
PLGW-PSA Basic is intended for permanent assembly to the anchorage system (e.g. tripod) and is mounted using a commercial Allen key.
The PLGW-PSA Supreme version has a patented system which allows for tool-free assembly and disassembly once the anchorage point is no longer in use and needs to be removed.
You can find more information on the functionality by reading the operating instructions.
The special finish using the colour RAL 1003 for both versions is approved for use with stationary antenna systems ("cell phone towers").
The Pewag PLGW-PSA anchorage point is available in the sizes M12 (for 1 person) as well as M16 and M20 (for max. 2 persons). All sizes can be supplied with individual thread lengths (prices on request).
Every anchorage point is marked with the thread size and the permitted number of persons. The individual serial number enables complete traceability on all compulsory inspections.
