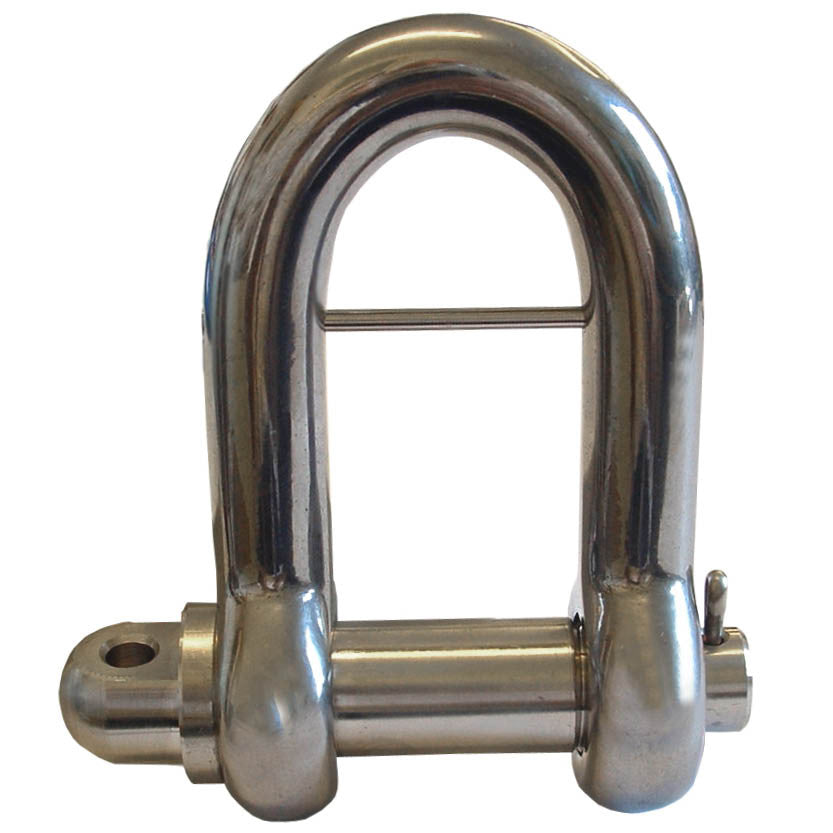

CLS Stainless Steel Chain Link Shackle

CLS Stainless Steel Chain Link Shackle

CLS chain link lifting shackles are of a unique design which allows them to be made captive without the need for welding.

Our exclusive CLS Chain Link Shackles were developed primarily for use in the water industry. The design of the shackle prevents it's removal from the pump chain after installation and the extended load pin with split pin is designed so that it can not work loose during service.

CLS Dee shackles are manufactured from Marine Grade 316 stainless steel and are produced exclusively for Brindley Chains in the UK.



Code

WLL [tonnes]

Body d1 [mm] Pin d2 [mm] Inside L [mm] Jaw w [mm] a [mm] b [mm] c [mm] Weight [kg/pc]
CLS1.25T 1.25 9.5 12.5 42 20 25 2 15 0.15
CLS2.5T 2.50 16 19 65 32 40 3 22 0.55
CLS3.5T 3.50 19 22 77 38 45 4 28 1.00
CLS5T 5.00 22 25 88 44 55 4 29 1.90
CLS6.3T 6.30 25 28 103 51 65 4 34 2.30
CLS9T 9.00 31.75 34.93 128 64 85 5 38 4.35
CLS12T 12.00 34.93 38.1 140 70 85 5 50 5.30
