Pewag Profilift Beta Lifting Point (PLBW)

Pewag Profilift Beta Lifting Point (PLBW)
Price on Request

Pewag PLBW lifting points features

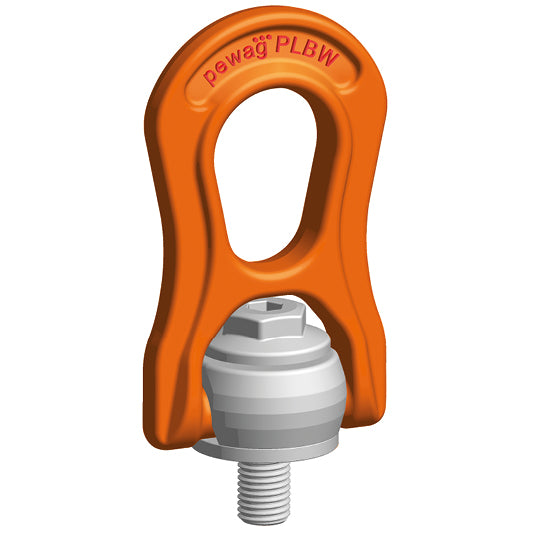

The PLBW screwable lifting and lashing point is 360° rotatable with a load ring that can be moved through an angle of 180° and can be positioned at any required angle due to its replaceable and patented spring. In the permitted applications, this lifting point offers a five-fold factor of safety.

Each lifting point comes with an individual serial number and is marked with the admissible load capacity for the most unfavourable application mode allowing for an increased load capacity in the case of vertical loads.

PLBW lifting points incorporate a special hexagonal screw made from grade 10.9 material which is interchangeable and secured to prevent loss. The screw is 100% crack tested as well as covered with a chromate VI-free protection against corrosion and marked with the load capacity and thread size. It can be tightened with a hexagon wrench or spanner wrench.

PLMS
Pewag Winner Profilift Beta is available with metric or UNC-thread types. The versions with metric threads are also available with customised bolt lengths and supplied complete with a special 100% crack detected prevailing torque type locking nut and washer to DIN 980-V.





All load capacities, categorised by the method of lifting, number of legs and angle of inclination are contained in a table that forms an integral part of the operating manual included with each lifting point.

Also available with 'peTAG' RFID upon request.

Metric thread sizes available: M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M48.

UNC thread sizes available: 5/16", 3/8", 1/2", 7/16", 9/16",  5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8" 1 1/2".







Permitted usage
For load capacities in the permitted directions of pull please refer to the load capacity table.

Non-permitted usage
During assembly, ensure that improper loading cannot arise due to any of the following factors:
•    Direction of pull is obstructed
•    Direction of pull is not within the indicated area
•    Loading ring rests against edges or loads

The load ring must be placed in the direction of pull before loading – do not turn under load!

For additional details and information, please refer to the full operating manual.



Pewag PLBW lifting points load chart

Calculating the required thread length (L):
L = H + S + K + X
H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size
       of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.

In addition to the standard and maximum thread lengths, Pewag also offers cut-to-length thread lengths. Customised and maximum thread lengths are supplied with a washer and a crack-tested, corrosion-proofed screw nut.

For detailed information such as method of lifting, number of legs, angle of inclination etc., please refer to the tables with technical data.
