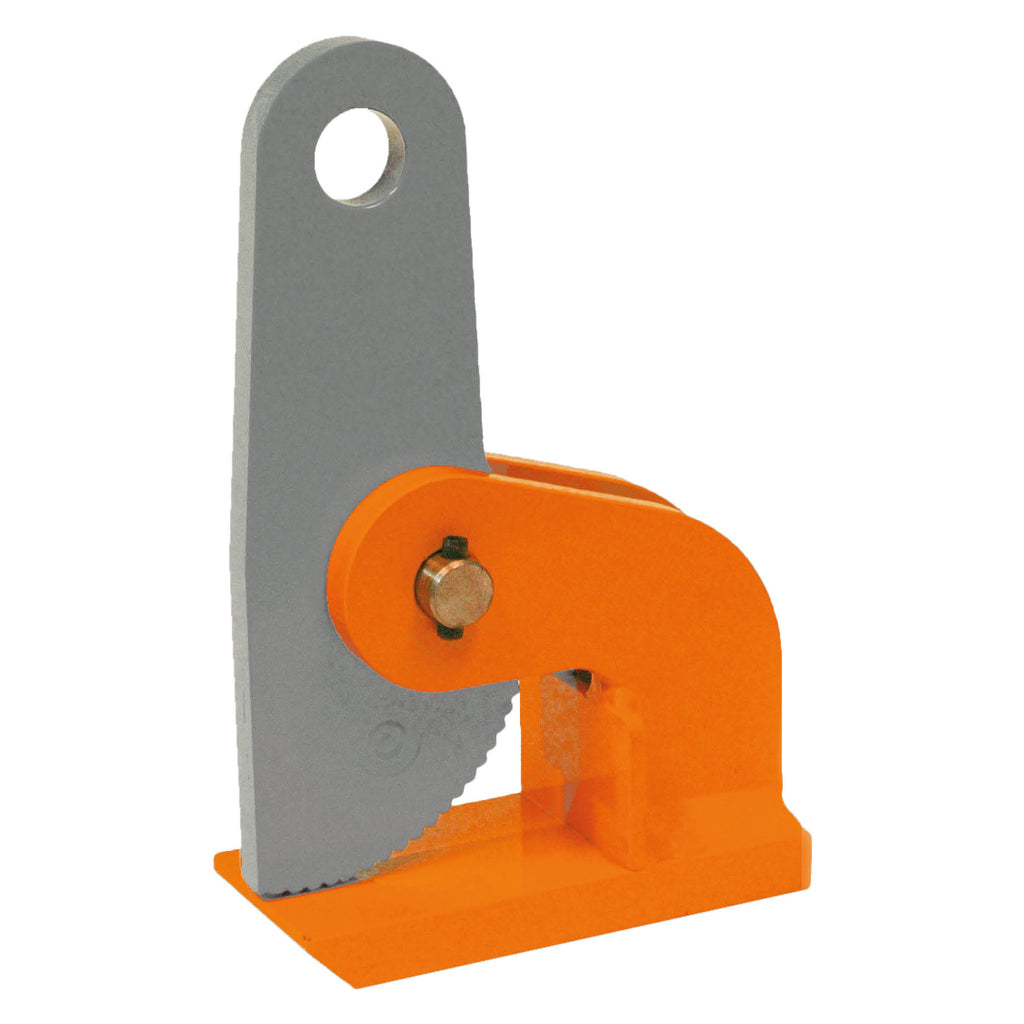

Pewag HXW / HSXW Horizontal Lifting Clamp

Price on Request

For horizontal lifting and moving of steel plates.

Clamp with compact shape and relative light unit weight but with a high lifting capacity. HXW/HSXW pewag winner lifting clamps must always be used in pairs (or multiples thereof).

Lifting capacity and jaw opening are clearly engraved in thebody. The Working Load Limits indicated are per pair of lifting clamps. The HSXW clamps have a larger jaw opening.

Code	Load capacity [kg/pair]	Jaw opening R [mm]	V [mm]	S [mm]	W [mm]	T [mm]	H [mm]	X [mm]	U [mm]	Y [mm]	Weight [kg/pc.]
HXW1T	1000	0-35	140	99	10	25	11,50	65	188	15	2,60
HXW2T	2000	0-60	180	118	15	30,50	19,50	90	287	16	7
HXW3T	3000	0-60	180	118	20	30,50	19,50	90	291	16	8
HXW4T	4000	0-60	220	145	25	30,50	19,50	105	304	20	13
HXW6T	6000	0-60	220	145	25	30,50	19,50	110	307	20	14
HXW8T	8000	0-60	225	135	35	30,50	19,50	120	336	30	19
HXW10T	10000	0-60	225	135	35	30,50	19,50	120	336	30	19
HXW12T	12000	0-60	225	135	35	30,50	19,50	120	336	30	19
HXW15T	15000	0-60	262	147	35	43	21.50	160	344	35	30
HXW25T	25000	0-60	262	147	40	43	21.50	175	349	35	33

HSXW2T	2000	0-100	180	120	15	30,50	19,50	90	383	15	9,20
HSXW3T	3000	0-100	180	120	20	30,50	19,50	90	387	15	10
HSXW4T	4000	0-100	220	145	25	30,50	19,50	105	414	20	15
HSXW6T	6000	0-100	220	145	25	30,50	19,50	120	414	20	16,50
HSXW8T	8000	0-100	225	135	35	30,50	19,50	120	428	30	21
HSXW10T	10000	0-100	225	135	35	30,50	19,50	120	428	30	22
HSXW12T	12000	0-100	225	135	35	30,50	19,50	120	428	30	22
HSXW15T	15000	0-150	350	240	35	45	27,50	140	665	35	53
