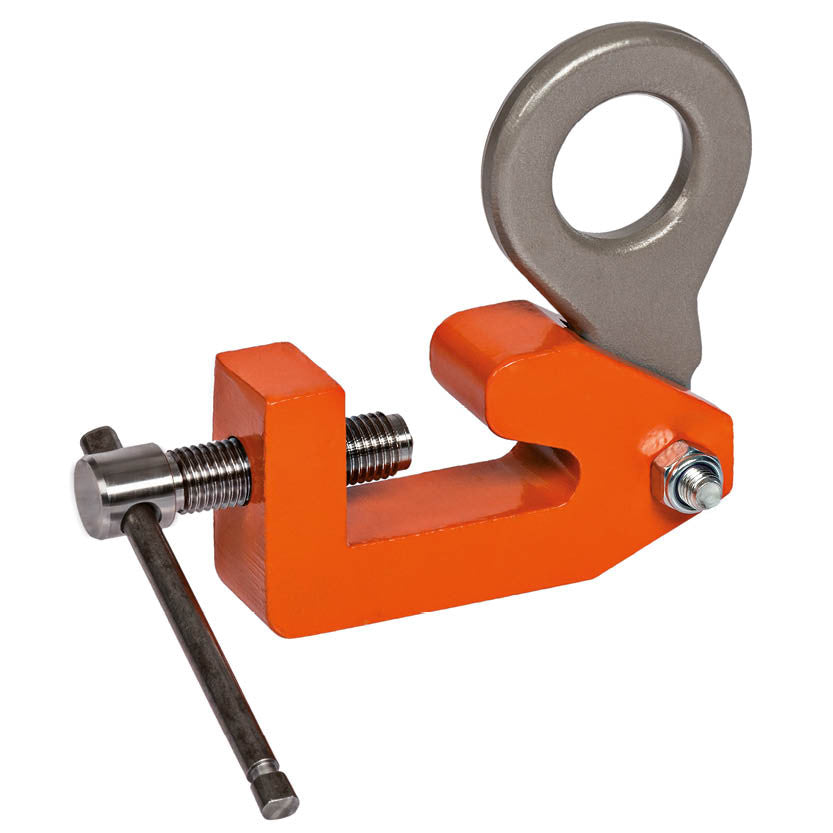

Pewag BSW Screw Clamps - ship building

Pewag BSW Screw Clamps - ship building
Price on Request

For use as a temporary lifting point in any room where HP-profile is being used, such as sectional ship parts and ship engine rooms.

The BSW clamp is equipped with a thread spindle for attaching the clamp. The clamp is used for HP-100 to HP-240 (HP = Hollandprofile).





Code Load capacity [kg] Jaw opening R [mm] V [mm] S [mm] T [mm] U [mm] H [mm] X [mm] Y [mm] Weight [kg/pc.]
BSW1.5T 1500 HP 100-240 150 74 45 180 75 40 16 2,90
BSW3T 3000 HP 100-240 150 75 65 205 75 80 16 6
