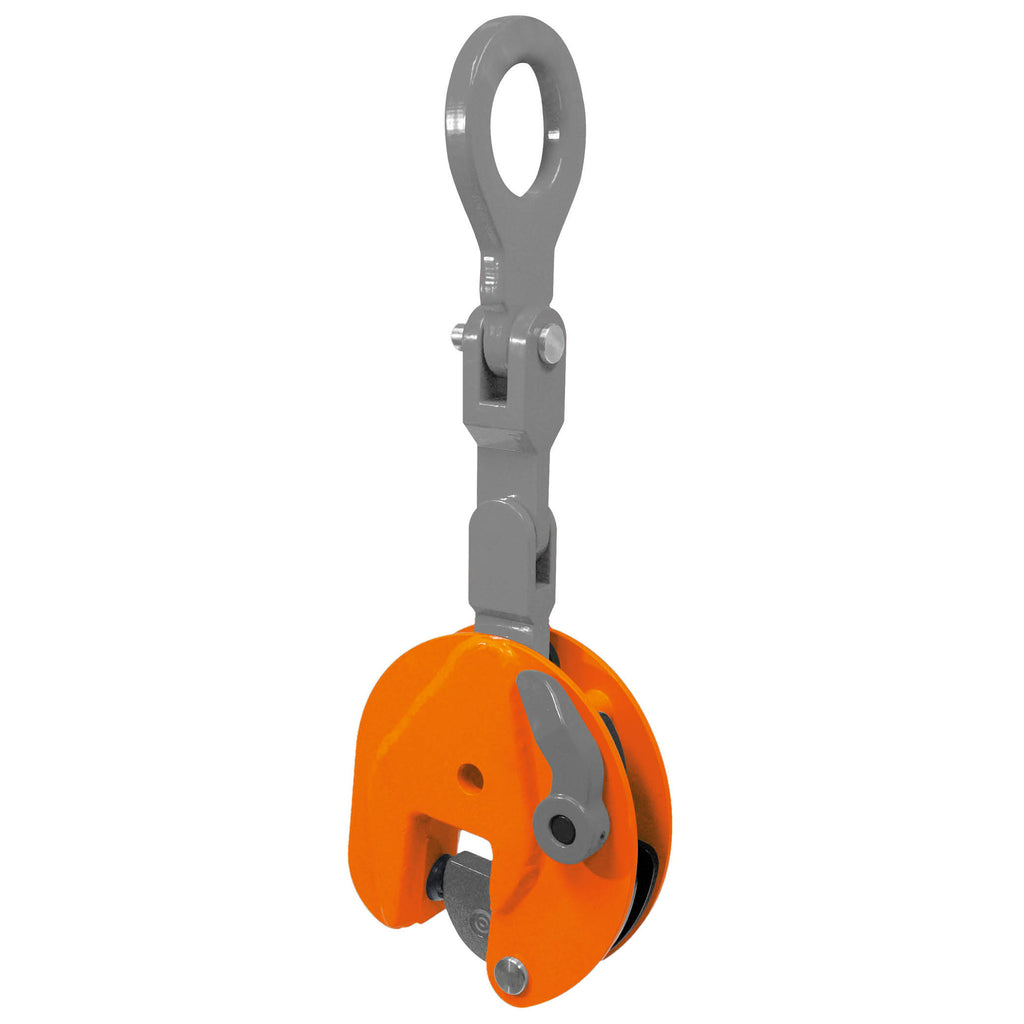

Pewag VMPW / VEMPW / SVMPW Vertical Lifting Clamp

Pewag VMPW / VEMPW / SVMPW Vertical Lifting Clamp
Price on Request

The VMPW, VEMPW and SVMPW lifting clamps are equipped with a three way multi-purpose lifting shackle.

The lifting shackle has a three way articulated linkage arrangement. For lifting and moving of all steel plates and structures.

When attached to a fixed load bearing arm (e.g. spreader bar)the clamp will retain its flexibility and no chain is needed.

Due to the length of the three way linkage arrangement the clamp can be lowered further between standing plates or structures.

Lifting capacity and jaw opening are clearly engraved in the body.

Type SVMPW is supplied with an enlarged jaw opening.

Minimum W.L.L. is 10% of the maximum W.L.L.



Code Load capacity [kg] Jaw opening R [mm] S [mm] T [mm] U [mm] V [mm] W [mm] X [mm] Y [mm] Weight [kg/pc.]
VMPW0.75T 750 0-13 47 30 307 100 37 37 10 2
VEMPW1T 1000 0-25 56 45 403 141 37 47 15 4,50
VEMPW2T 2000 0-35 78 64 516 183 56 56 16 8
VEMPW3T 3000 0-35 78 64 516 183 56 56 16 8
VMPW4.5T 4500 0-25 85 70 648 203 60 77 20 17,80
VEMPW4.5T 4500 0-45 85 70 650 228 60 78 20 19
VMPW6T 6000 0-32 114 75 760 225 78 78 20 24
VEMPW6T 6000 0-50 114 75 760 259 82 78 20 25,50
VMPW7.5T 7500 0-40 111 75 800 246 76 82 20 29
VEMPW7.5T 7500 0-55 111 75 792 267 70 86 20 30,50
VMPW9T 9000 0-55 111 75 792 267 70 86 20 31

SVMPW6T 6000 40-90 114 75 756 275 70 78 20 26
SVMPW7.5T 7500 50-100 111 75 695 312 70 86 20 31,50
SVMPW9T 9000 50-100 111 75 792 312 70 86 20 32,50
