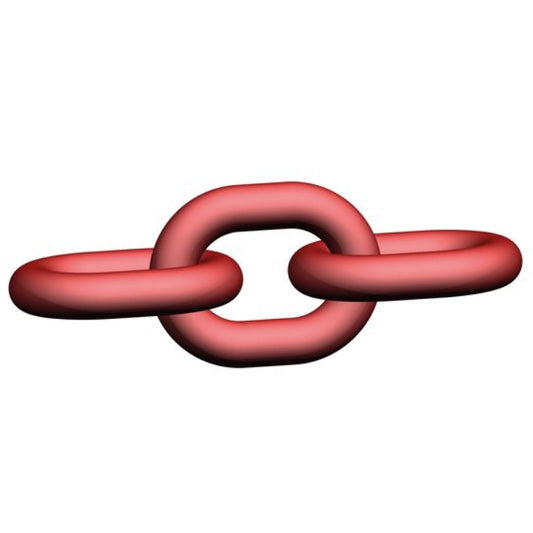

Pewag Winner Offshore Chain

Pewag Winner Offshore Chain

For the assembly of chain slings for offshore container lifting procedures.

  • Special heat treatment to increase toughness
  • Crack detection tested
  • Charpy V notch impact tested, result min 42J (27J in the weld)
  • Safety factor 4:1
  • Proof tested 2.5 times WLL
  • Production according to DNV 2.7-1, EN 818-2 and EN 12079-2
  • Type approved in accordance with DNV 2.7-1
  • Type approval certificate no. TAS00001UW

Pewag Winner Offshore Chain DNV 2.7-1

Code

Working load limit

[kg]

Breaking strength

[kN]

Nominal diameter

[mm]

Pitch t

[mm]

Internal width b1 min.

[mm]

External width b2 max.

[mm]

Weight

[kg/m]

OFFSH 10 3,150 126 10 30 14 36 2.30
OFFSH 13 5,300 212 13 39 18 47 4.20
OFFSH 16 8,000 322 16 48 22 58 5.90
OFFSH 19 11,200 454 19 57 27 69 8.40
OFFSH 22 15,000 608 22 66 30 79 11.20
OFFSH 26 21,200 849 26 78 35 94 15.50
OFFSH 32 31,500 1,290 32 96 43 115 24.10
