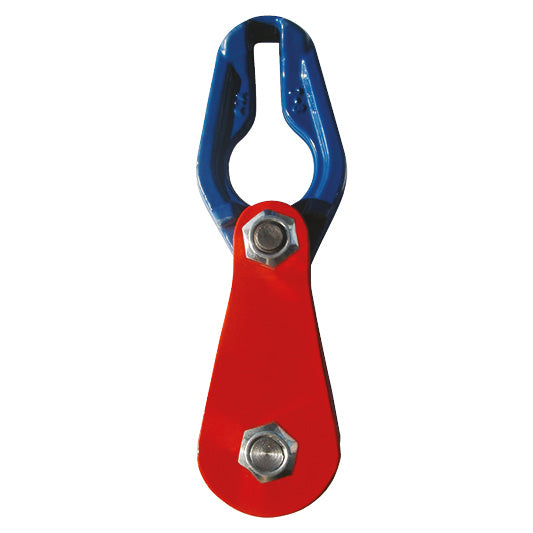

Rope Pulley With Sliding Shoe (SRL-GBGV)
![Pewag SRL-GBGV rope pulley with sliding shoe](http://www.brindleychains.co.uk/cdn/shop/products/SRL-GBGVthumbnail_1024x1024.jpg?v=1662385731)
Pewag rope pulley. Can be assembled on the winch instead of the first sliding shoe. Facilitates simple and fast switching e.g. thinning out of the wood.
Code |
Tensile force [daN] |
Winch tensile force max. [daN] |
Pulley dia. [mm] |
Rope dia. max. [mm] |
Weight [kg/pc.] |
SRL-GBGV 7/8 | 6,000 | 3,000 | 49 |
10 | 1.24 |
The stated tensile force is valid in case of ground course. The winch tensile force is valid in case of 180° deflection.
Please consider the safety instruction for proper use.
![]() |
