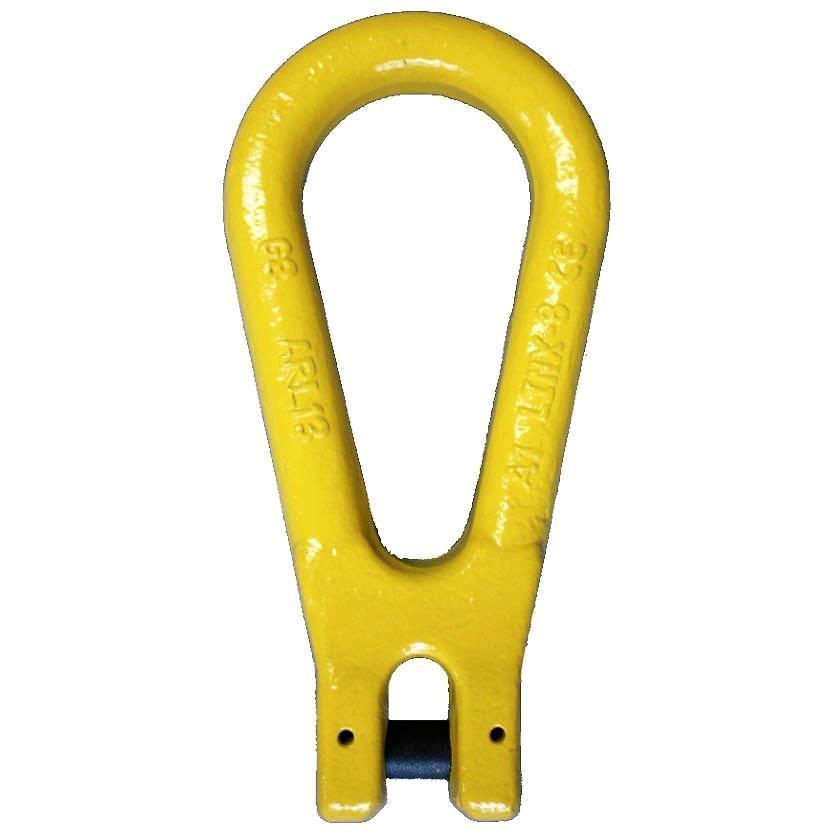

LINX-8 Grade 8 Clevis Reeving Link (ARL) EN1677-1
LINX-8 G8 Clevis Reeving Link to EN 1677-1.
- Manufactured from alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | WLL (t) | e [mm] | t [mm] | w [mm] | d (sub) [mm] | s [mm] | Weight [kg/pc.] |
| ARL7-8 | 2.00 | 106 | 87 | 45 | 9 | 10 | 0.47 |
| ARL10 | 3.15 | 132 | 108 | 60 | 13 | 12 | 0.98 |
| ARL13 | 5.30 | 174 | 137.5 | 66.5 | 16 | 16.5 | 1.87 |
| ARL16 | 8.00 | 203 | 165 | 72 | 20 | 19 | 2.78 |
