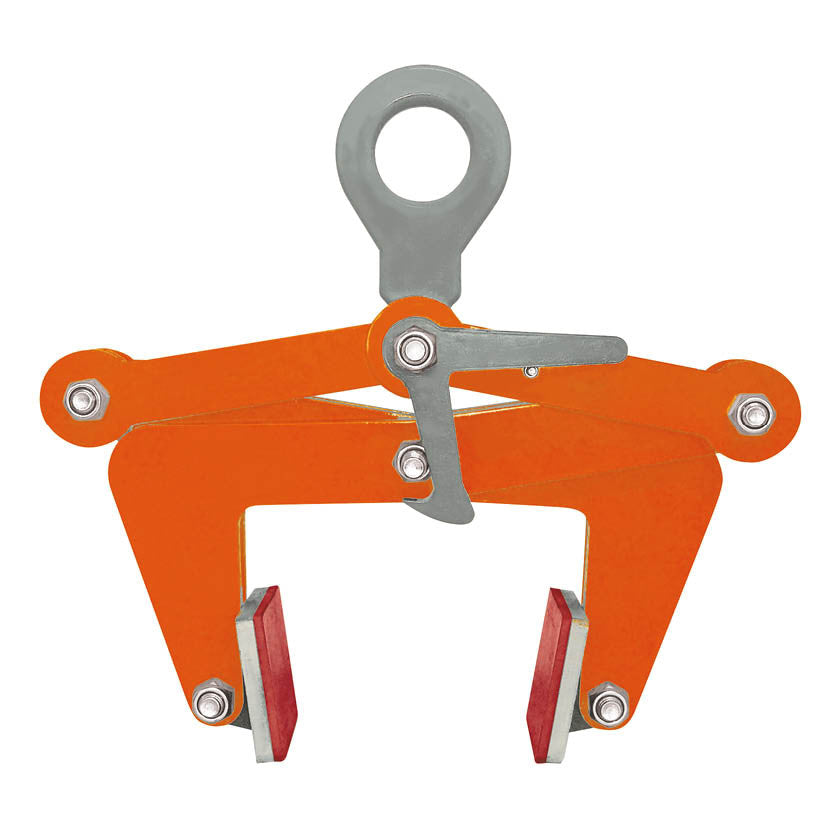

Pewag BLCW Special Grab

Pewag BLCW Special Grab
Price on Request

For vertical lifting and moving of various materials as steel, wood, plastic, concrete, marble etc. which have parallel sides. The clamp is locked in the open position. To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards. When laying down the load, the clamp automatically unlocks itself to open.

The pads are covered with special plastic to avoid damage of contact surfaces.

Code Load capacity [kg] Jaw opening R [mm] V min-max [mm] U min-max [mm]   S [mm] T [mm] X [mm] Weight [kg/pc.]
BLCW0.5T 500 30 - 110 270-325 305-460 95 45 80 (*70) 15 7
BLCW1T 1000 100 - 230 425-530 380-655 120 45 80 (*70) 15 12,30
BLCW2T 2000 220 - 360 580-675 410-735 140 45 80 (*70) 15 18
BLCW3T 3000 350 - 500 725-835 530-900 178 64 100 (*90) 16 33
