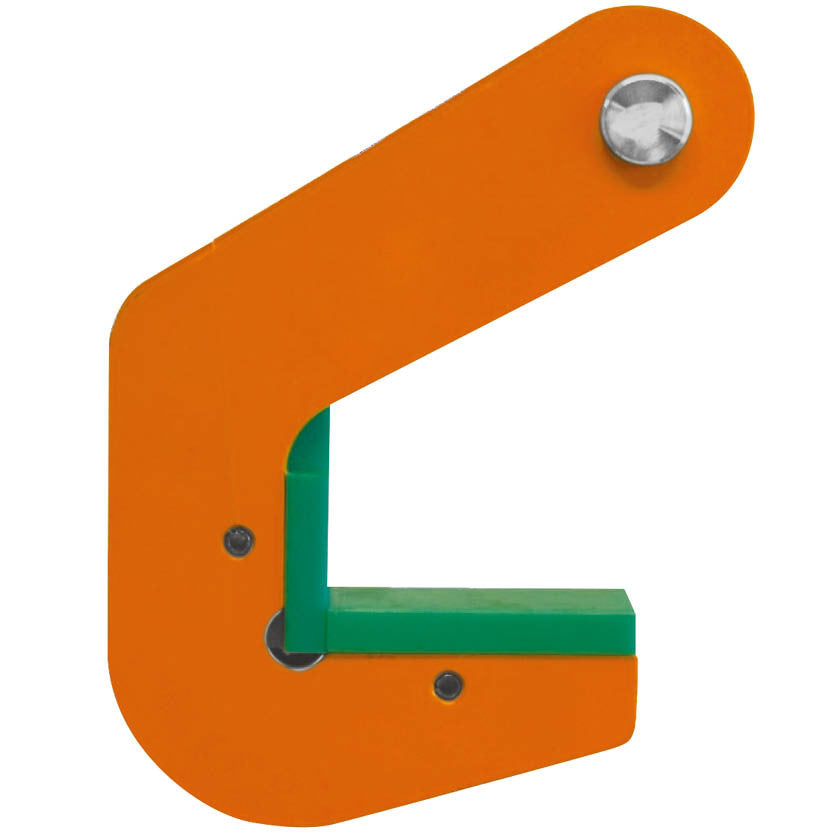

Pewag PHW / PHW-HD Pipe Hook
Price on Request
For horizontal lifting and moving of steel and concrete pipes. Compact shape and relatively low unit weight with a high lifting capacity. The surface is equipped with “special” plastic cover. Plastic cover replacement parts are available and easy to change.
PHW-HD
| Code | Load capacity [kg] | Jaw opening R [mm] | V [mm] | S [mm] | W [mm] | U [mm] | T [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| PHW1.5T | 1500 | 40 | 120 | 70 | 50 | 185 | 16 | 41 | 25 | 2 |
| PHW3T | 3000 | 40 | 120 | 70 | 50 | 185 | 16 | 41 | 25 | 2 |
| PHW4T | 4000 | 50 | 140 | 70 | 58 | 204 | 26 | 41 | 25 | 3 |
| PHW6T | 6000 | 50 | 140 | 70 | 58 | 204 | 26 | 41 | 25 | 3 |
| PHW8T | 8000 | 70 | 140 | 70 | 58 | 224 | 26 | 45 | 25 | 3,40 |
| PHW10T | 10000 | 70 | 140 | 70 | 58 | 224 | 26 | 85 | 45 | 7 |
| PHW12T | 12000 | 70 | 140 | 70 | 58 | 224 | 26 | 85 | 45 | 7 |
| PHW15T | 15000 | 70 | 155 | 70 | 76 | 250 | 26 | 100 | 60 | 9 |
| PHW20T | 20000 | 70 | 155 | 70 | 76 | 250 | 26 | 100 | 60 | 9 |
| PHW-HD5T | 5000 | 60 | 271 | 100 | 85 | 230 | 26 | 80 | 20 | 6,70 |
| PHW-HD10T | 10000 | 60 | 271 | 100 | 85 | 230 | 26 | 80 | 30 | 9,70 |
| PHW-HD20T | 20000 | 60 | 291 | 100 | 105 | 269 | 36 | 80 | 35 | 14 |
| PHW-HD30T | 30000 | 60 | 309 | 100 | 115 | 293 | 43 | 80 | 40 | 19 |
| PHW-HD60T | 60000 | 60 | 309 | 100 | 115 | 313 | 62 | 80 | 60 | 28,50 |
