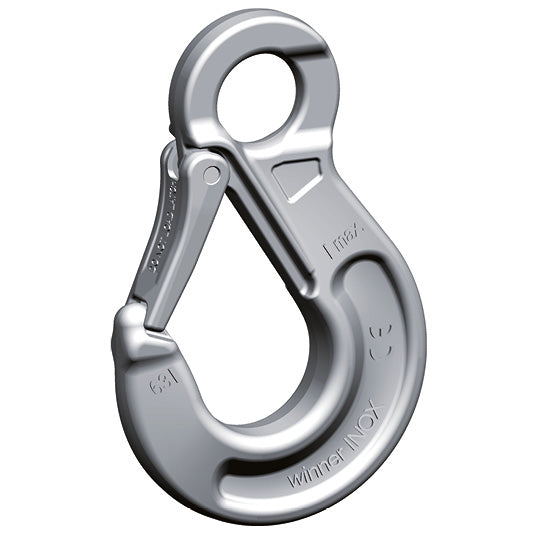

HSWI Stainless Steel Eye Sling Hook

HSWI Stainless Steel Eye Sling Hook

Stainless steel eye sling hook.

Ddrop-forged and stamped.

Connection to chain using Connex link or for welded slings using BWI transition link or for use with stainless steel wire rope slings.

Compact design guarantees maximum load with minimum weight, impact protection for safety latch and bolt as well as large hook mouth.

Wide hook tip eliminates possibility of hooking into the chain.

Strong safety latch spring, riveted on both sides, provides superior directional stability.

Code

WLL

[kg]

e [mm] h [mm] a [mm] d1 [mm] d2 [mm] g1 [mm] b [mm]

Weight

[kg/pc.]

HSWI 5/6-6 630 84 20 14 21 8 22 67 0,25
HSWI 7/8-6 1600 112 29 20 27 13 32 98 0,70
HSWI 10-6 2500 133 33 28 37 15 39 115 1,35
HSWI 13-6 4250 172 43 35 48 18 51 147 2,60
HSWI 16-6 6300 213 51 44 55 24 66 182 4,80
