LINX-8 Grade 8 (G8) Load Chain EN818-2

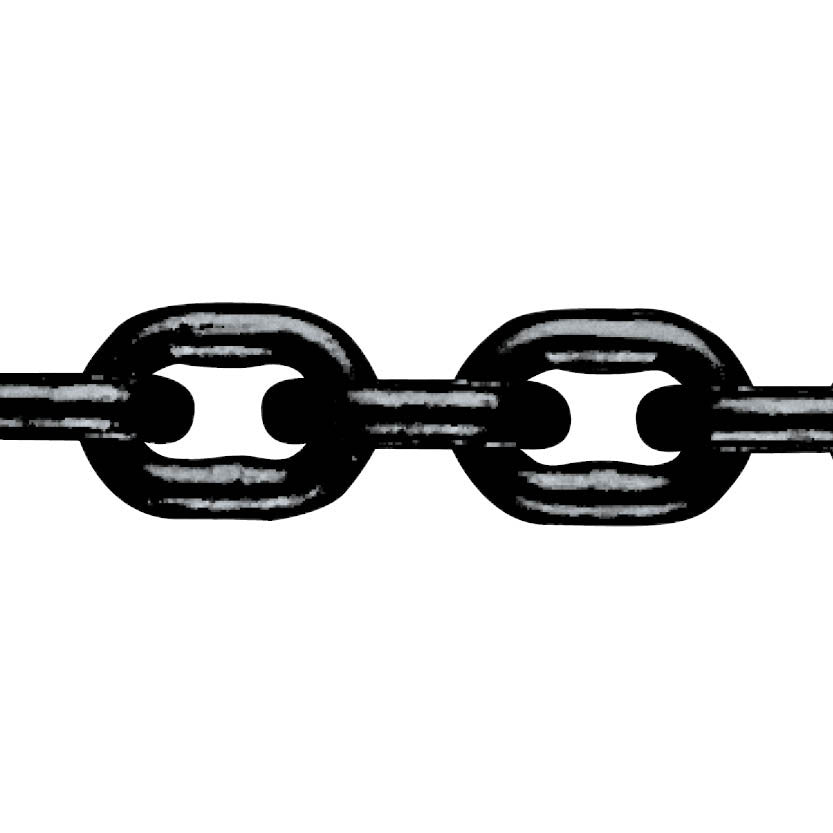

LINX-8 BCL Grade 8 (G8) Load Chain EN818-2

LINX-8 G8 Sling Chain to EN 818-2.

  • Load chain for Grade 8 chain sling assemblies
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Finished with a black electrophoretic coating for added corrosion protection

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4. Only chains manufactured to EN818-2 meet with the requirements of this standard.

Code

Nominal dia. (d) [mm]

Pitch (t) [mm]

Inside width (b1 min.) [mm]

Outside width (b2 max.) [mm]

WLL (tonnes)

Breaking force (kN)

Weight [kg/m]

BCL 6 EN 6 18 7.8 22.2 1.12 45.4 0.76
BCL 7 EN 7 21 9.1 25.9 1.50 61.6 1.10
BCL 8 EN 8 24 10.4 29.6 2.00 80.4 1.40
BCL 10 EN 10 30 13 37 3.15 126 2.16
BCL 13 EN 13 39 16.9 48.1 5.30 214 3.58
BCL 16 EN 16 48 20.8 59.2 8.00 320 5.50
BCL 20 EN 20 60 26 74 12.50 503 9.00
BCL 22 EN 22 66 28.6 81.4 15.00 608 10.90
BCL 26 EN 26 78 33.8 96.2 21.20 849 15.50
BCL 32 EN 32 96 41.6 118 31.50 1290 24.10
