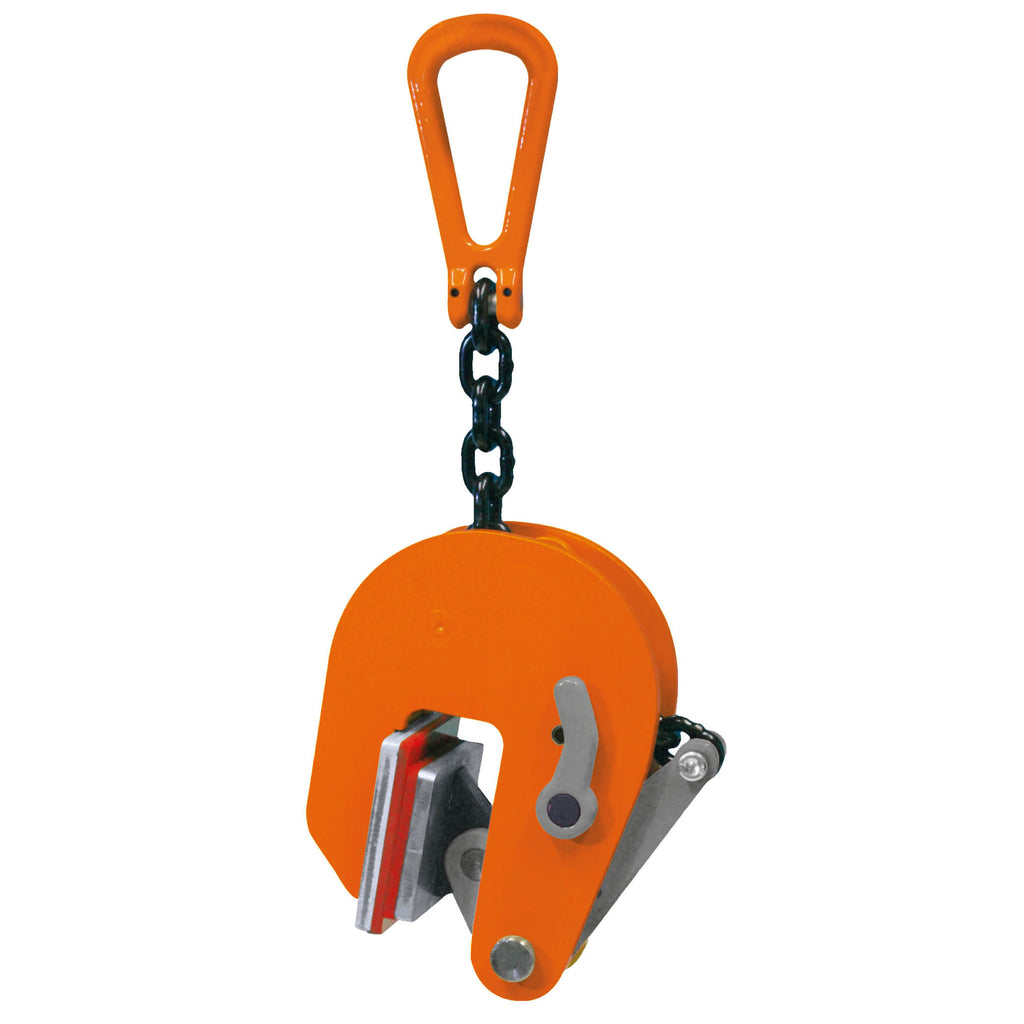

Pewag VNMW / VSNMW Vertical Lifting Clamp

Pewag VNMW / VSNMW Vertical Lifting Clamp
£466.16   (£388.47 ex. VAT)


VNMW / VSNMW pewag winner is a non-marking clamp with two special synthetic pads.

The clamp can be used for lifting, handling and moving of (stainless) steel, aluminium, wood and marble plates and will not leave any marks.

The clamp is locked in closed as well as in open position and is mounted in the crane hook by means of a lifting chain with reeving link.



Code Load capacity [kg] Jaw opening R [mm] H [mm] S [mm] T [mm] U [mm] V [mm] W [mm] X [mm] Y [mm] Weight [kg/pc.]
VNMW0.5T 500 1-20 205 102 40 462 224 48 80 14 6
VSNMW0.5T 500 17-37 205 102 40 462 241 48 80 14 6
VNMW1T 1000 1-30 232 105 40 470 282 46 80 14 6,50
VNMW1.5T 1500 1-40 232 105 40 470 282 46 80 14 6,50
VNMW2T 2000 1-50 362 124 50 704 408 63 80 18 15
VNMW3T 3000 1-60 362 124 50 704 408 63 80 18 15,50
