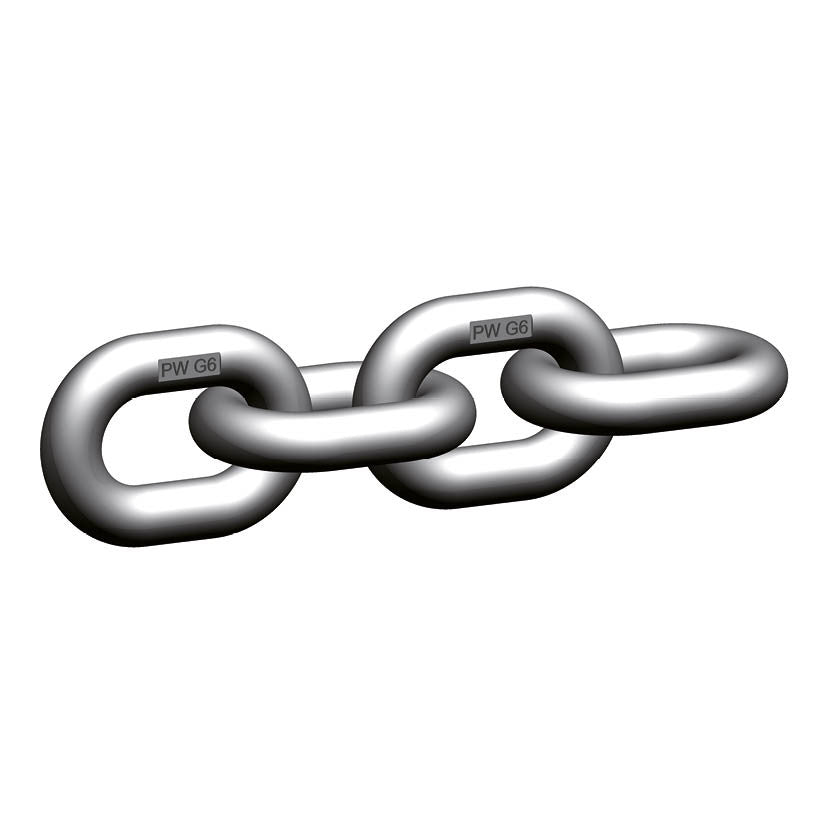

Pewag Winner Inox G6+ Stainless Steel Chain

Pewag Winner Inox G6+ Stainless Steel Chain

Stainless steel lifting chain, electrically welded and stamped, guaranteed compatability with CWI Connex connectors.

Similar DIN 5687-1 repr. EN 818-2. 100% tested.



Code Nominal diamater dn [mm] Standard delivery length [m]

Pitch t [mm]

Inside width b1 min. [mm] Outside width b2 max. [mm] WLL [kg] Breaking force [kN] Weight [kg/m]
WOX 4-6 4 50 m 12 6,2 14,8 400 16,0 0,38
WOX 5-6 5 50 m 15 7,5 18,5 630 25,0 0,58
WOX 6-6 6 50 m 18 8,7 20,9 900 37,5 0,82
WOX 7-6 7 50 m 21 9,5 25,2 1.25 50,0 1,11
WOX 8-6 8 50 m 24 10,8 28,6 1.6 63,0 1,43
WOX 10-6 10 50 m 30 13,5 36,0 2.5 100,0 2,25
WOX 13-6 13 25 m 39 17,5 46,8 4.25 170,0 3,77
WOX 16-6 16 25 m 48 21,5 57,6 6.3 250,0 5,62
WOX 20-5 20 - 60 27 72 8 314,0 9,29
WOX 26-4+ 26 - 78 35,0 93,6 12 471,0 16,20
