Pewag Winner Grade 10 Clevis Safety Hook (KLHW) EN1677-3

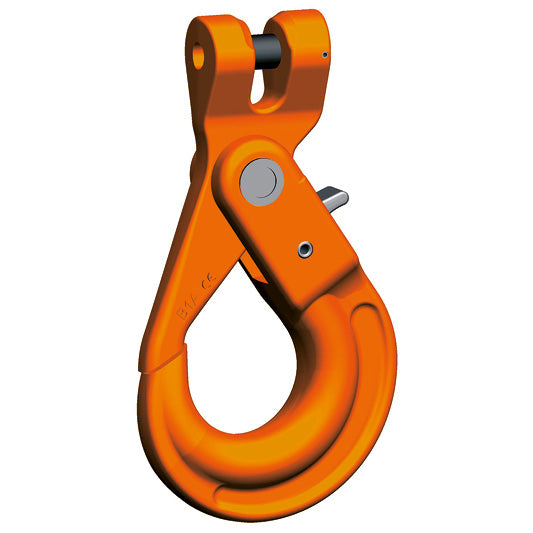

Pewag Winner KLHW Grade 10 (G10) Clevis Safety Hook EN1677-3

Pewag Winner G10 Clevis Safety Locking Hook to EN 1677-3 With Mechanical Values For Grade 10.

  • Terminal fitting for chain sling assemblies
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.

Pewag Winner G10 Clevis Safety Hook KLHW

Code Load capacity [tonnes] e [mm] h [mm] a [mm] b [mm] d [mm] g [mm] s max. [mm] Weight [kg/pc.]
KLHW5/6 1.40 94 20 17 71 7 28 1 0,50
KLHW7 1.90 123 26 20 88 9 34 1 0,90
KHLHW8 2.50 123 26 20 88 10 34 1 0,90
KLHW10 4.00 144 30 29 107 12,50 45 1 1,60
KLHW13 6.70 180 40 35 138 16 52 2 2,90
KLHW16 10.00 218 50 41 168 20 60 2 5,80
KLHW19/20 16.00 259 62 50 194 24 70 2 9,90
KLHW22 19.00 286 65 52 211 27 81 2 12,80
KLHW26 26.50 338 79 61 253 33 100 2 20,50
