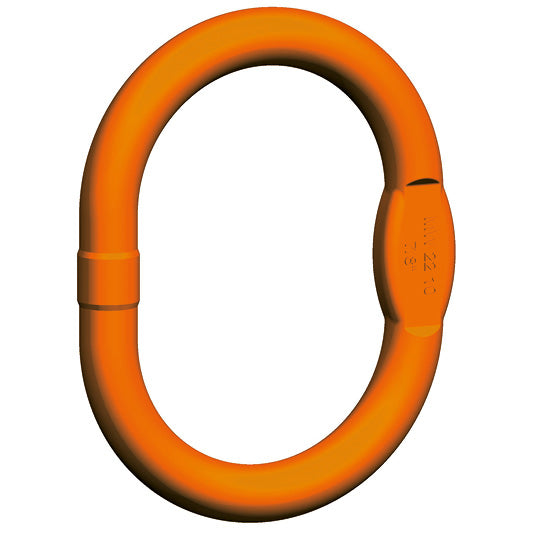

Pewag Winner Grade 10 Enlarged Master Link (MW) EN1677-4
Pewag Winner G10 Enlarged Master Link to EN 1677-4 with mechanical values for Grade 10.
- For single leg and two leg chain slings and wire rope assemblies
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load Capacity [tonnes] | Can be used up to single hook [DIN 15401] | d [mm] | t [mm] | w [mm] | s [mm] | Weight [kg/pc] | 1-leg AI [mm] | 2-leg AII [mm] | 3- +4-leg AIII/IV [mm] |
| MW 10 | 1.40 | Nr. 2,5 | 11 | 90 | 65 | 10 | 0,22 | 5 | 5 | - |
| MW 13 | 2.30 | Nr. 4 | 14 | 120 | 70 | 10 | 0,44 | 6+7 | 6 | 5 |
| MW 16 | 3.20 | Nr. 5 | 16 | 140 | 80 | 13 | 0,67 | 8 | 7 | - |
| MW 18 | 4.20 | Nr. 6 | 19 | 160 | 95 | 14 | 1,09 | 10 | 8 | 6 |
| MW 22 | 6.70 | Nr. 10 | 23 | 160 | 110 | 17 | 1,69 | 13 | 10 | 7+8 |
| MW 26 | 10.10 | Nr. 10 | 27 | 190 | 110 | 20 | 2,65 | 16 | 13 | 10 |
| MW 32 | 16.00 | Nr. 12 | 33 | 230 | 130 | 26 | 4,78 | 19 | 16 | 13 |
| MW 36 | 21.20 | Nr. 20 | 38 | 275 | 150 | 29 | 7,48 | 22 | 19 | 16 |
| MW 56 | 40.00 | Nr. 50 | 56 | 350 | 250 | - | 21,98 | 32 | 26 |
