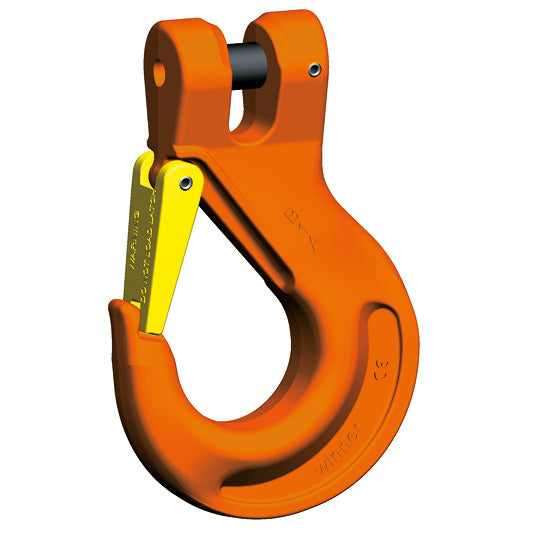

Pewag Winner Grade 10 Clevis Sling Hook (KHSW) EN1677-2
Pewag Winner G10 Clevis Sling Hook With Safety Catch to EN 1677-2 With Mechanical Values For Grade 10.
- Terminal fitting for chain sling assemblies
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | d [mm] | g1 [mm] | b [mm] | Weight [kg/pc.] |
| KHSW5/6 | 1.40 | 69 | 20 | 15 | 7 | 19 | 66 | 0,20 |
| KHSW7 | 1.90 | 95 | 28 | 19 | 9 | 26 | 90 | 0,60 |
| KHSW8 | 2.50 | 95 | 28 | 19 | 10 | 26 | 90 | 0,60 |
| KHSW10 | 4.00 | 109 | 35 | 25 | 12,50 | 31 | 108 | 1,10 |
| KHSW13 | 6.70 | 136 | 41 | 34 | 16 | 39 | 131 | 2,00 |
| KHSW16 | 10.00 | 155 | 49 | 37 | 20 | 45 | 153 | 3,48 |
| KHSW19/20 | 16.00 | 184 | 53 | 51 | 24 | 53 | 177 | 5,00 |
| KHSW22 | 19.00 | 214 | 62 | 52 | 27 | 62 | 196 | 9,00 |
