Pewag Winner Grade 10 Connex Connecting Link (CW) EN1677-1

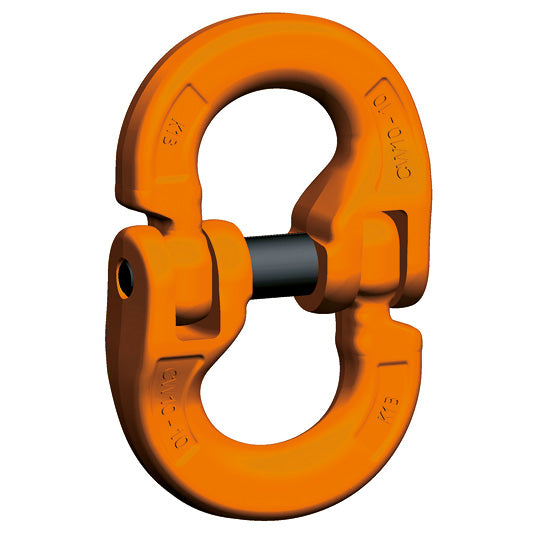

Pewag Winner CW Grade 10 (G10) Connex Connecting Link EN1677-1

Pewag Winner G10 Connex Coupling Link to EN 1677-1 With Mechanical Values For Grade 10.

  • For the connection of chains and fittings
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.

Pewag Winner G10 Connex Connecting Link CW

 Code Load Capacity [tonnes] e [mm] c [mm] s [mm] d [mm] b [mm] g [mm] Weight [kg/pc]
CW 5 1.00 36 7 9 7 35 13 0,05
CW 6 1.40 44 8 11 8 39 14 0,06
CW 7 1.90 51 10 13 9 47 17 0,12
CW 8 2.50 62 12 14 10 55 18 0,23
CW 10 4.00 72 15 18 13 64 24 0,42
CW 13 6.70 88 20 22 17 79 28 0,84
CW 16 10.00 103 21 29 21 106 33 1,40
CW 19/20 16.00 115 30 35 25 118 42 2,40
CW 22 19.00 161 34 39 25 148 51 4,15
CW 26 26.50 190 40 46 30 175 60 6,70
CW 32 40.00 206 47 56 35 216 80 11,20
