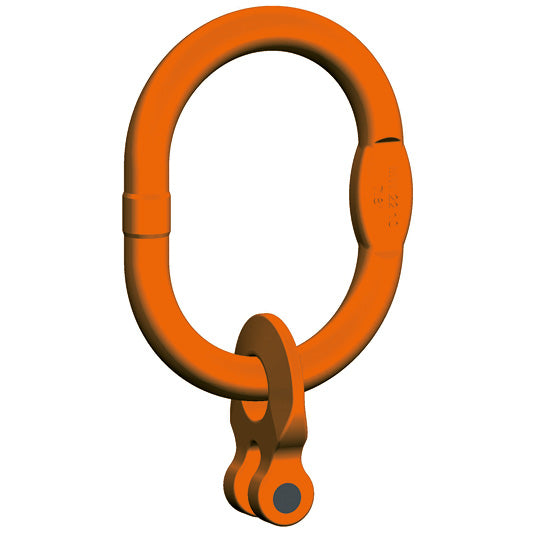

Pewag Winner Grade 10 Enlarged Clevis Master Link Set (KMGW1) EN818-4
Pewag Winner G10 Enlarged Clevis Master Link Set to EN 818-4 with mechanical values for Grade 10.
- For use with single leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4.
| Code | Load capacity [tonnes] | For chain [mm] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| KMGW1-5/6 | 1.40 | 5 + 6 | Nr. 4 | 14 | 120 | 70 | 151 | 0,52 |
| KMGW1-8 | 2.50 | 8 | Nr. 5 | 16 | 140 | 80 | 183 | 0,87 |
| KMGW1-10 | 4.00 | 10 | Nr. 6 | 19 | 160 | 95 | 211 | 1,45 |
| KMGW1-13 | 6.70 | 13 | Nr. 10 | 23 | 160 | 110 | 223 | 2,39 |
| KMGW1-16 | 10.00 | 16 | Nr. 10 | 27 | 190 | 110 | 264 | 3,86 |
