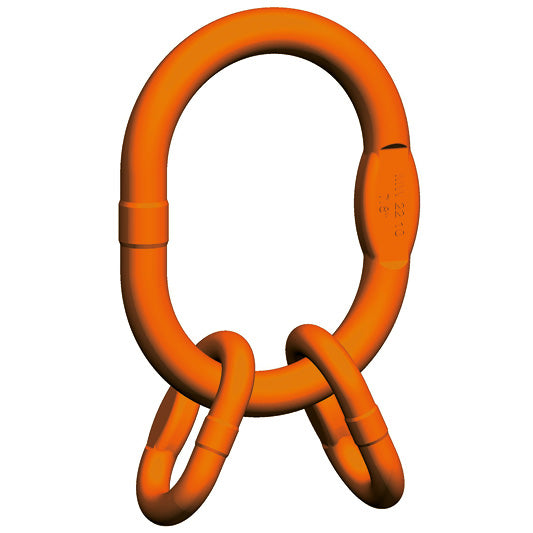

Pewag Winner Grade 10 Enlarged Quad Master Link Assembly (VMW) EN1677-4
Pewag Winner G10 Enlarged Quad Master Link Assembly to EN 1677-4 with mechanical values for Grade 10.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Consisting of | Load capacity 0°-45° [tonnes] | Used up to single hook | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| VMW6 | MW18 + 2 BW13 | 4.20 | Nr. 6 | 160 | 95 | 214 | 1,43 |
| VMW7/8 | MW22 + 2 BW16 | 6.60 | Nr. 10 | 160 | 110 | 230 | 2,41 |
| VMW10 | MW26 + 2 BW20 | 10.10 | Nr. 10 | 190 | 110 | 275 | 4,01 |
| VMW13 | MW32 + 2 BW22 | 15.70 | Nr. 12 | 230 | 130 | 345 | 6,90 |
| VMW16 | MW36 + 2 BW26 | 21.20 | Nr. 20 | 275 | 150 | 415 | 11,12 |
| VMW19/20 | MW56 + 2 BW32 | 34.10 | Nr. 50 | 350 | 250 | 500 | 28,08 |
| VMW22 | MW56 + 2 BW36 | 40.00 | Nr. 50 | 350 | 250 | 520 | 30,62 |
