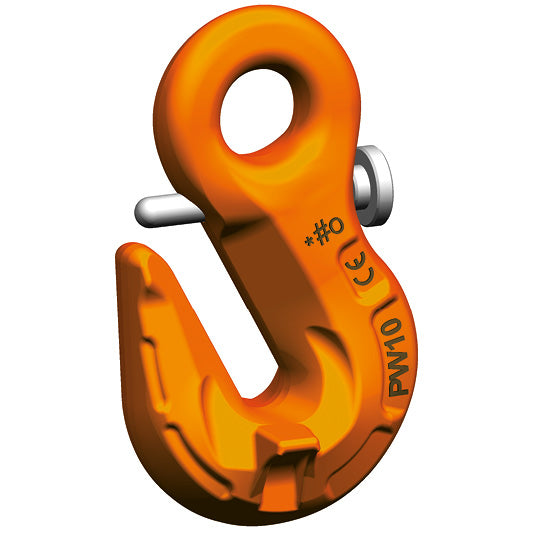

Pewag Winner Grade 10 Eye Grab Hook With Safety Pin (PSW) EN1677-1
Pewag Winner G10 Eye Grab Hook With Safety Pin to EN 1677-1 With Mechanical Values For Grade 10.
- For the shortening of chain slings and loops that must not tighten
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | b [mm] | d1 [mm] | d2 [mm] | g [mm] | Weight [kg/pc.] |
| PSW7/8 | 2.50 | 65 | 57 | 16 | 12 | 9 | 0,37 |
| PSW10 | 4.00 | 77 | 71 | 20 | 14 | 12 | 0,70 |
| PSW13 | 6.70 | 101 | 92 | 26 | 19 | 15 | 1,56 |
| PSW16 | 10.00 | 121 | 113 | 32 | 23 | 19 | 2,90 |
