Pewag Winner Grade 10 Eye Sling Hook (HSW) EN1677-2

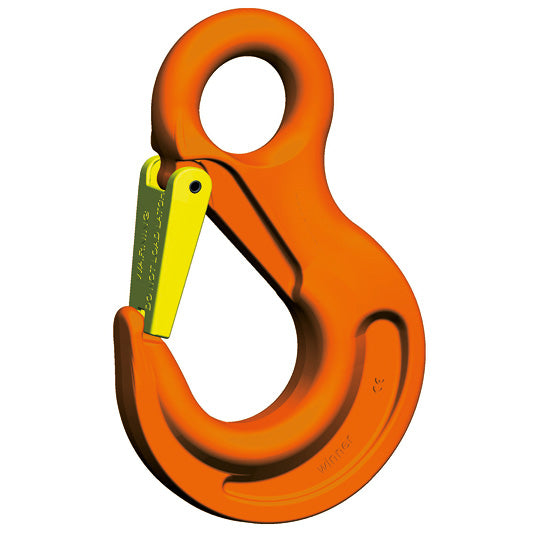

Pewag Winner HSW Grade 10 (G10) Eye Type Sling Hook EN1677-2

Pewag Winner G10 Eye Type Sling Hook With Safety Latch to EN 1677-2 With Mechanical Values For Grade 10.

  • Terminal fitting for chain slings and wire ropes
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.

Pewag Winner G10 Eye Type Sling Hook HSW

Code Load capacity [tonnes] e [mm] h [mm] a [mm] d1 [mm] d2 [mm] g1 [mm] b [mm] Weight [kg/pc.]
HSW5/6 1.40 85 21 17 20 10 19 68 0,30
HSW7/8 2.50 106 27 19 25 11 26 88 0,50
HSW10 4.00 131 33 26 34 16 31 109 1,10
HSW13 6.70 164 44 33 43 19 39 134 2,20
HSW16 10.00 183 50 40 50 25 45 155 3,50
HSW19/20 16.00 205 55 48 55 27 53 178 5,80
HSW22 19.00 225 62 50 60 29 62 196 8,00
HSW26 26.50 259 75 60 70 37 73 235 13,40
HSW32 40.00 299 97 82 66 45 87 291 27,50
