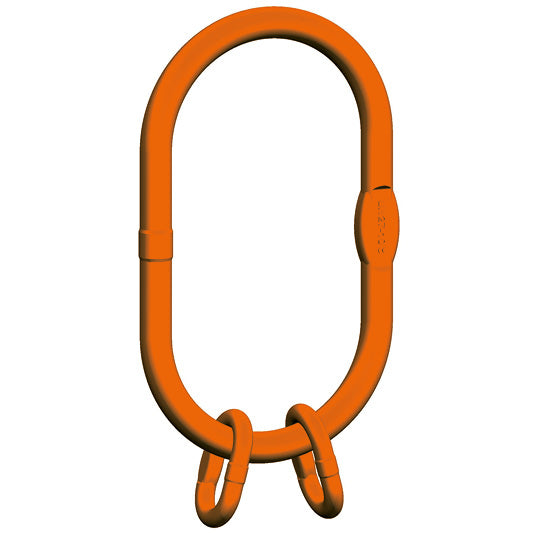

Pewag Winner Grade 10 Oversize Master Link Assembly (VLW2/4) EN1677-4
Pewag Winner G10 Oversize Master Link Assembly to EN 1677-4 with mechanical values for Grade 10.
- For use with 2, 3 and 4 leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Consisting of | Load capacity 0°-45° [tonnes] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| VLW2-6/7/8/4-6 | LW22 + 2 BW13 | 3.55 | Nr. 25 | 22 | 340 | 180 | 394 | 3,50 |
| VLW2-10/4-7/8 | LW27 + 2 BW16 | 5.60 | Nr. 25 | 27 | 340 | 180 | 410 | 5,10 |
| VLW2-13/4-10 | LW32 + 2 BW20 | 9.50 | Nr. 25 | 33 | 340 | 180 | 425 | 8,00 |
| VLW2-16/4-13 | LW40 + 2 BW22 | 14.00 | Nr. 25 | 40 | 340 | 180 | 455 | 12,30 |
| VLW2-19/4-16 | LW40 + 2 BW26 | 21.20 | Nr. 25 | 40 | 340 | 180 | 480 | 13,80 |
