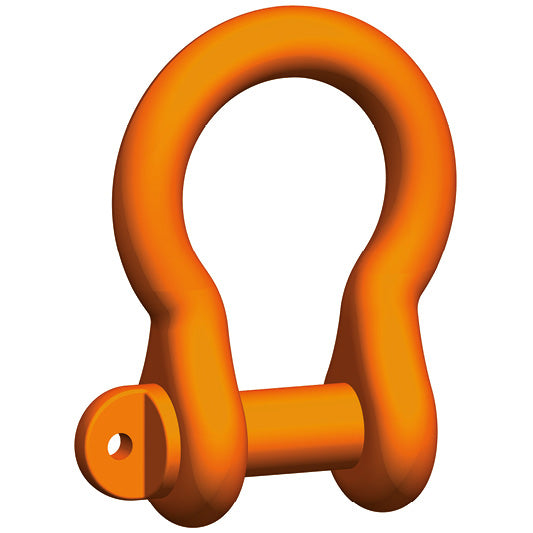

Pewag Winner Grade 10 Screw Pin Bow Shackle (GSCHW)
Pewag Winner G10 Bow Shackle With A-Type Screw Pin.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | b [mm] | b1 [mm] | a [mm] | c [mm] | d2 [mm] | Weight [kg/pc.] |
| GSCHW7/8 | 2.50 | 51 | 22 | 32 | 13 | 34 | 16 | 0.35 |
| GSCHW10 | 4.00 | 64 | 27 | 43 | 16 | 40 | 19 | 0.64 |
| GSCHW13 | 6.70 | 76 | 31 | 51 | 19 | 46 | 22 | 1.03 |
| GSCHW16 | 10.00 | 95 | 43 | 68 | 25 | 59 | 28 | 2.23 |
