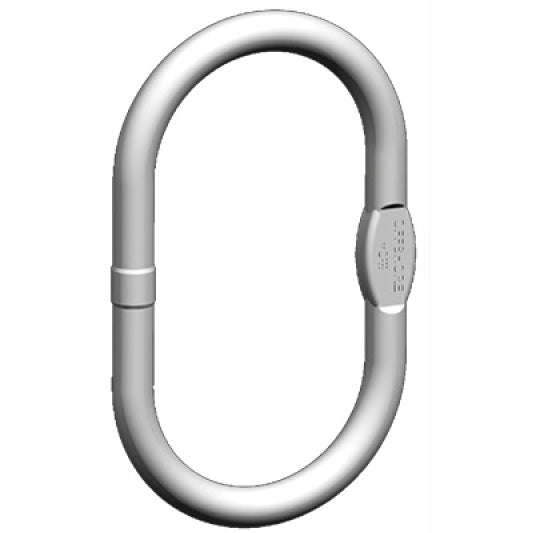

Pewag Winner Offshore Master Link (AOS-FZN) DNV 2.7-1
Galvanised master link for offshore container lifting purposes in wire rope slings.
For manufacture of I-leg and II-leg slings. Allocation to max. usable crane hooks according to DIN 15401 stated in table.
Only DNV approved galvanised master link on the market
- Only DNV approved galvanised master link on the market
- Type approval certificate no. TAS00002JU
- Special galvanising process
- Master links can be MPI tested without loss of test accuracy
- Saves money long term, if used correctly, more than triples the life of a master link
- Eliminates the risk of hydrogen embrittlement during life span
- Clean, no contamination of container with red rust
- Safety factor 5:1
- Specially heat-treated - Grade 8 material
- CE marking
| Code |
WLL 0-45° [kg] |
Test force [kN] |
Breaking force [kN] |
For hook sizes up to DIN 15401 No. |
d [mm] |
t [mm] |
w [mm] |
Weight [kg/pc.] |
| AOS23-FZN | 6.70 | 164 | 329 | 16 | 23 | 270 | 140 | 2.51 |
| AOS25-FZN | 8.90 | 218 | 437 | 16 | 25 | 270 | 140 | 2.99 |
| AOS28-FZN | 14.50 | 356 | 711 | 16 | 28 | 270 | 140 | 3.80 |
| AOS33-FZN | 17.80 | 437 | 873 | 16 | 33 | 270 | 140 | 5.39 |
| AOS36-FZN | 24.60 | 603 | 1,207 | 16 | 36 | 270 | 140 | 6.50 |
| AOS40-FZN | 32.00 | 785 | 1,570 | 20 | 40 | 275 | 150 | 8.35 |
| AOS45-FZN | 38.30 | 939 | 1,879 | 25 | 45 | 340 | 180 | 12.90 |
| AOS50-FZN | 45.40 | 1,113 | 2,227 | 32 | 50 | 350 | 190 | 16.70 |
| AOS56-FZN | 67.00 | 1,643 | 3,286 | 32 | 56 | 400 | 200 | 23.28 |
| AOS70-FZN | 85.00 | 2,085 | 4,169 | 50 | 70 | 460 | 250 | 43.40 |
