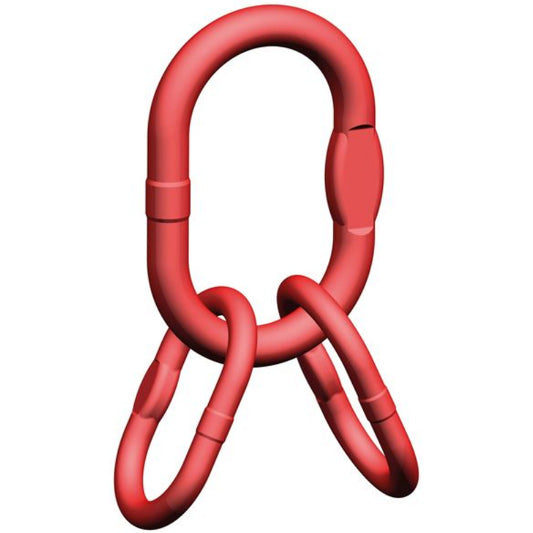

Pewag Winner Offshore Quad Master Link Assembly (VOS) DNV 2.7-1
Master link sub-assemblies (quad assemblies) for offshore container lifting purposes in wire rope slings. AOS type master links are used as the main link. Particularly suited to wire rope slings, due to the inner width to give space for wire rope thimbles.
For the manufacture of 4 leg slings. Allocation to max. usable crane hooks according to DIN 15401 stated in table.
- Links type approved in accordance with DNV 2.7-1
- Type approval certificate no. TAS00001UX
- Special heat treatment to prevent hydrogen embrittlement
- Grade 8 material
- Safety factor 5:1
- CE marking
- Red powder coated
| Code | Consisting of |
Load capacity 0°-45° [tonnes] |
Used up to single hook in accordance with DIN 15401 |
e [mm] |
d [mm] |
t [mm] |
w [mm] |
d1 [mm] |
t1 [mm] |
w1 [mm] |
Weight [kg/pc] |
| VOS23/17 | AOS23 + 2 BOS17 | 6.70 | 16 | 410 | 23 | 270 | 140 | 17 | 140 | 80 | 4.03 |
| VOS25/19 | AOS25 + 2 BOS19 | 8.90 | 16 | 405 | 25 | 270 | 140 | 19 | 135 | 75 | 4.84 |
| VOS28/23 | AOS28 + 2 BOS23 | 14.50 | 16 | 450 | 28 | 270 | 140 | 23 | 180 | 100 | 7.37 |
| VOS33/27 | AOS33 + 2 BOS27 | 17.10 | 16 | 450 | 33 | 270 | 140 | 27 | 180 | 100 | 10.41 |
| VOS36/30 |
AOS36 + 2 BOS30 |
24.10 | 16 | 460 | 36 | 270 | 140 | 30 | 190 | 110 | 13.15 |
| VOS40/33 | AOS40 + 2 BOS33 | 28.10 | 20 | 545 | 40 | 275 | 150 | 33 | 270 | 140 | 19.14 |
| VOS45/36 | AOS45 + 2 BOS36 | 38.30 | 25 | 610 | 45 | 340 | 180 | 36 | 270 | 140 | 25.81 |
| VOS50/40 | AOS50 + 2 BOS40 | 45.00 | 32 | 625 | 50 | 350 | 190 | 40 | 275 | 150 | 33.26 |
| VOS56/50 | AOS56 + 2 BOS50 | 67.00 | 32 | 750 | 56 | 400 | 200 | 50 | 350 | 190 | 56.39 |
| VOS70/56 | AOS70 + 2 BOS56 | 85.00 | 50 | 860 | 70 | 460 | 250 | 56 | 400 | 200 | 89.62 |
