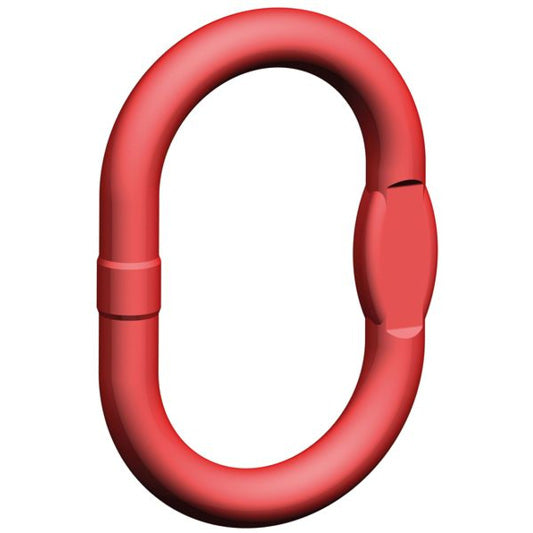

Pewag Winner Offshore Master Link (AW) DNV 2.7-1
Master link for offshore container lifting purposes in welded chain slings.
For manufacture of 1 + 2 leg slings. Allocation to max. usable crane hooks according to DIN 15401 stated in table.
- Type approved in accordance with DNV 2.7-1
- Type approval certificate no. TAS00001UX
- CE marking
| Code |
WLL EN standard (5:1 SF) [tonnes] |
Test force [kN] |
Breaking force [kN] |
For hook sizes up to DIN 15401 No. |
d [mm] |
t [mm] |
w [mm] |
Weight [kg/pc.] |
| AW16 OFFSH | 3.50 | 85.8 | 172 | 2.5 | 16 | 110 | 60 | 0.58 |
| AW18 OFFSH | 5.00 | 123 | 245 | 5 | 19 | 135 | 75 | 0.92 |
| AW22 OFFSH | 7.60 | 186 | 373 | 6 | 23 | 160 | 90 | 1.59 |
| AW26 OFFSH | 10.90 | 267 | 535 | 8 | 27 | 180 | 100 | 2.46 |
| AW32 OFFSH | 16.40 | 402 | 805 | 10 | 33 | 200 | 110 | 4.04 |
| AW36 OFFSH | 25.60 | 628 | 1,256 | 16 | 36 | 260 | 140 | 6.22 |
