6455194567 Pewag Winner Grade 10 (G10) Components

Pewag Winner Grade 10 Master Link With Shortener (VXKW1) EN818-4

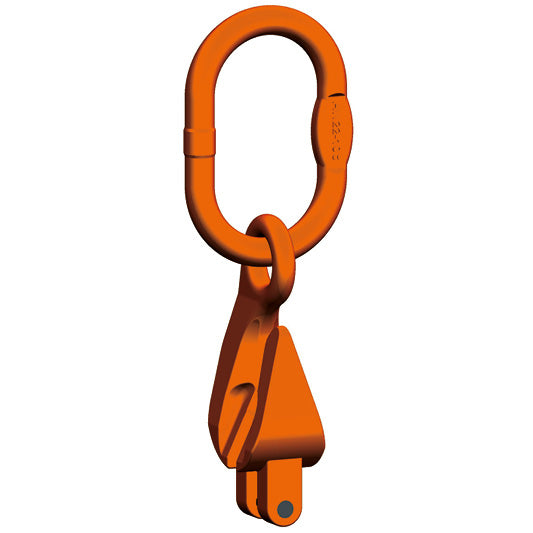

Pewag Winner VXKW1 Grade 10 (G10) Clevis Master Link Set With Shortener EN818-4

Pewag Winner G10 Clevis Master Link Set With Integral XKW Shortener to EN 818-4 With Mechanical Values For Grade 10.

  • For use with single leg chain slings
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4.

Pewag Winner G10 Master Link Set With Integral Shortener VXKW1

Code Load capacity [tonnes] For chain [mm] Used up to single hook d [mm] t [mm] w [mm] e [mm] Weight [kg/pc]
VXKW1-5 1.00 5 Nr. 1,6 10 80 50 164 0,44
VXKW1-6 1.40 6 Nr. 2,5 13 110 60 194 0,64
VXKW1-7 1.90 7 Nr. 2,5 13 110 60 232 0,96
VXKW1-8 2.50 8 Nr. 2,5 16 110 60 232 1,16
VXKW1-10 4.00 10 Nr. 5 19 135 75 294 2,11
VXKW1-13 6.70 13 Nr. 6 23 160 90 363 4,30
VXKW1-16 10.00 16 Nr. 8 27 180 100 413 7,26
