6455277255 Pewag Winner Grade 10 (G10) Components

Pewag Winner Grade 10 Master Link With Shorteners (VXKW2) EN818-4

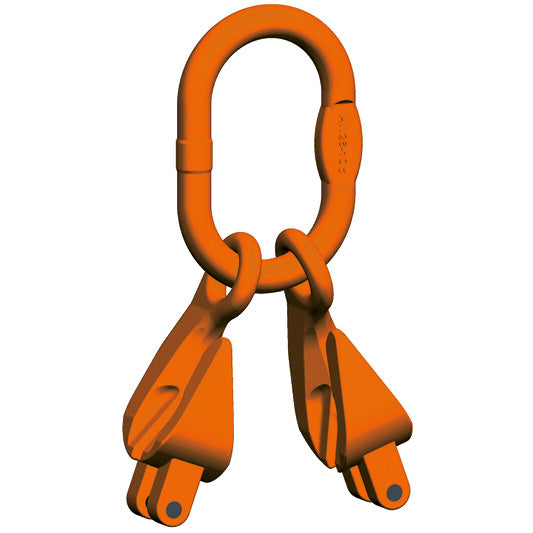

Pewag Winner VXKW2 Grade 10 (G10) Clevis Master Link Set With Shorteners EN818-4

Pewag Winner G10 Clevis Master Link Set With Integral XKW Shorteners to EN 818-4 With Mechanical Values For Grade 10.

  • For use with two leg chain slings
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4.

Pewag Winner G10 Master Link Set With Integral Shorteners VXKW2

Code Load capacity 0°-45°/45°-60° [tonnes] For chain [mm] Used up to single hook d [mm] t [mm] w [mm] e [mm] Weight [kg/pc]
VXKW2-5 1.40 / 1.00 5 Nr. 1,6 10 80 50 164 0,74
VXKW2-6 2.00 / 1.40 6 Nr. 2,5 13 110 60 194 0,94
VXKW2-7 2.65 / 1.90 7 Nr. 2,5 16 110 60 232 1,77
VXKW2-8 3.55 / 2.50 8 Nr. 5 19 135 75 257 2,12
VXKW2-10 5.60 / 4.00 10 Nr. 6 23 160 90 319 4,10
VXKW2-13 9.50 / 6.70 13 Nr. 8 27 180 100 383 7,86
VXKW2-16 14.00 / 10.00 16 Nr. 10 33 200 110 433 13,74
