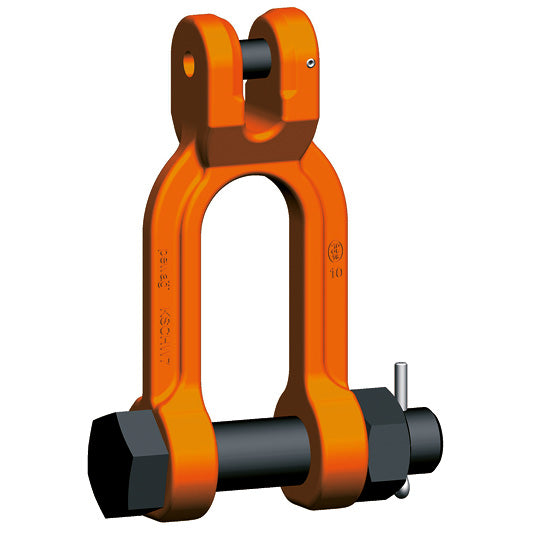

Pewag Winner Grade 10 Clevis Shackle (KSCHW) EN1677-1
Pewag Winner G10 Clevis Shackle to EN 1677-1 With Mechanical Values For Grade 10.
- Terminal fitting for chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | e1 [mm] | b min [mm] | a [mm] | d [mm] | c [mm] | d1 [mm] | Weight [kg/pc.] |
| KSCHW 7 | 1.90 | 76 | 54 | 26 | 12 | 9 | 31 | 16 | 0,49 |
| KSCHW 8 | 2.50 | 76 | 54 | 26 | 12 | 10 | 31 | 16 | 0,49 |
| KSCHW 10 | 4.00 | 105 | 76 | 32 | 16 | 12,50 | 39 | 20 | 0,95 |
| KSCHW 13 | 6.70 | 113 | 77 | 42 | 21 | 16 | 50 | 24 | 1,89 |
