Pewag Winner Grade 10 Clevis Sling Hook (KHSW) EN1677-2

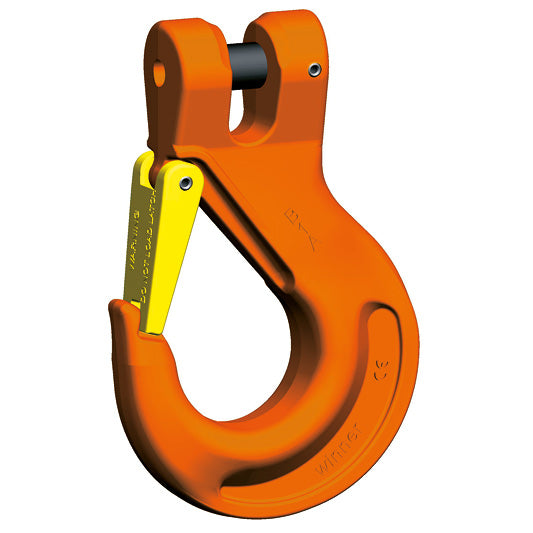

Pewag Winner KHSW Grade 10 (G10) Clevis Sling Hook EN1677-2

Pewag Winner G10 Clevis Sling Hook With Safety Catch to EN 1677-2 With Mechanical Values For Grade 10.

  • Terminal fitting for chain sling assemblies
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.

Pewag Winner G10 Clevis Sling Hook KHSW

Code Load capacity [tonnes] e [mm] h [mm] a [mm] d [mm] g1 [mm] b [mm] Weight [kg/pc.]
KHSW5/6 1.40 69 20 15 7 19 66 0,20
KHSW7 1.90 95 28 19 9 26 90 0,60
KHSW8 2.50 95 28 19 10 26 90 0,60
KHSW10 4.00 109 35 25 12,50 31 108 1,10
KHSW13 6.70 136 41 34 16 39 131 2,00
KHSW16 10.00 155 49 37 20 45 153 3,48
KHSW19/20 16.00 184 53 51 24 53 177 5,00
KHSW22 19.00 214 62 52 27 62 196 9,00
