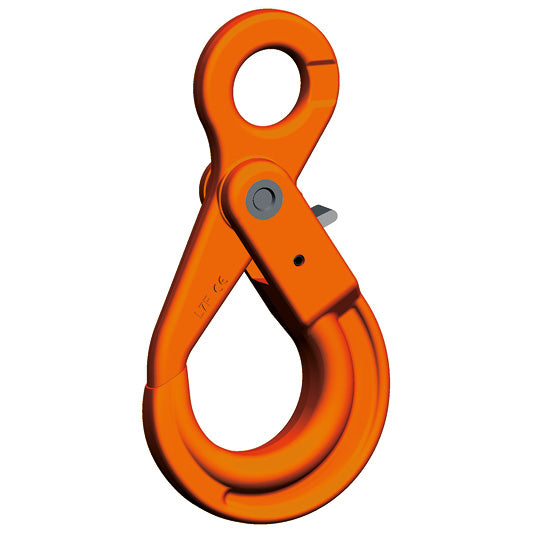

Pewag Winner Grade 10 Eye Safety Hook (LHW) EN1677-3
Pewag Winner G10 Eye Type Safety Locking Hook to EN 1677-3 With Mechanical Values For Grade 10.
- Terminal fitting for chain slings and wire ropes
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | b [mm] | d1 [mm] | d2 [mm] | g [mm] | s max [mm] | Weight [kg/pc.] |
| LHW5/6 | 1.40 | 110 | 20 | 17 | 71 | 21 | 11 | 28 | 1 | 0,50 |
| LHW7/8 | 2.50 | 136 | 26 | 20 | 88 | 25 | 12 | 34 | 1 | 0,90 |
| LHW10 | 4.00 | 169 | 30 | 29 | 107 | 35 | 15 | 45 | 1 | 1,50 |
| LHW13 | 6.70 | 205 | 40 | 35 | 138 | 40 | 20 | 52 | 2 | 2,70 |
| LHW16 | 10.00 | 251 | 50 | 41 | 168 | 50 | 27 | 60 | 2 | 5,70 |
| LHW19/20 | 16.00 | 290 | 62 | 50 | 194 | 60 | 30 | 70 | 2 | 9,80 |
| LHW22 | 19.00 | 322 | 65 | 52 | 211 | 70 | 32 | 81 | 2 | 12,40 |
