1351398228058 Pewag Winner Grade 10 (G10) Components

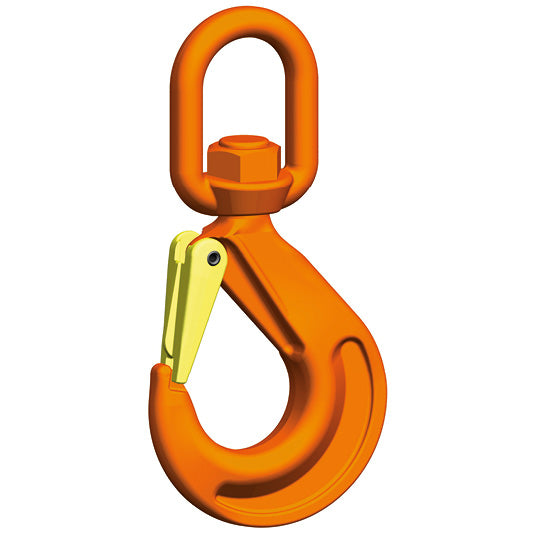

Pewag Winner Grade 10 Eye Swivel Hook With Ball Bearing (WSBW) EN1677-2

Pewag Winner WSBW Grade 10 (G10) Eye Swivel Hook With Ball Bearing EN1677-2

Pewag Winner G10 Eye Type Swivel Hook With Ball Bearing to EN 1677-2 With Mechanical Values For Grade 10.

  • Fitted with ball bearing - will rotate under load!
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 120°C.

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.

Pewag Winner G10 Eye Swivel Hook With Ball Bearing WSBW

Code Load capacity [tonnes] e [mm] h [mm] a [mm] d1 [mm] d2 [mm] g1 [mm] Weight [kg/pc.]
WSBW7/8 2.50 154 28 19 37 12 26 0.85
WSBW10 4.00 183 33 25 41 16 30 1.56
WSBW13 6.70 221 40 30 47 20 38 2.71
