6455420935 Pewag Winner Grade 10 (G10) Components

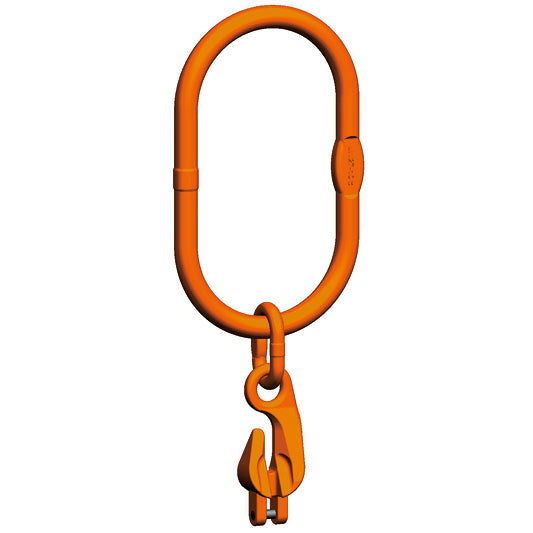

Pewag Winner Grade 10 Oversize Master Link With Shortener (LXKW1) EN818-4

Pewag Winner LXKW1 Grade 10 (G10) Oversize Master Link With Shortener EN1677-4

Pewag Winner G10 Oversize Clevis Master Link Set With Integral XKW Shortener to EN 818-4 With Mechanical Values For Grade 10.

  • For use with single leg chain slings
  • Manufactured from special alloy steel
  • Proof load tested to 2.5 x WLL
  • Fatigue tested to 1.5 x WLL for 20,000 cycles
  • 100% Magnaflux crack detected
  • Powder coated

Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).

Fully compliant for use in chain slings certified to EN818-4.

Pewag Winner G10 Oversize Master Link With Shortener LXKW1

Code Load capacity [tonnes] Used up to single hook d [mm] t [mm] w [mm] e [mm] Weight [kg/pc]
LXKW1-6 1.40 Nr. 25 23 340 180 478 3,70
LXKW1-8 2.50 Nr. 25 23 340 180 516 4,00
LXKW1-10 4.00 Nr. 25 27 340 180 569 6,00
LXKW1-13 6.70 Nr. 25 27 340 180 629 7,80
LXKW1-16 10.00 Nr. 25 33 340 180 688 12,70
