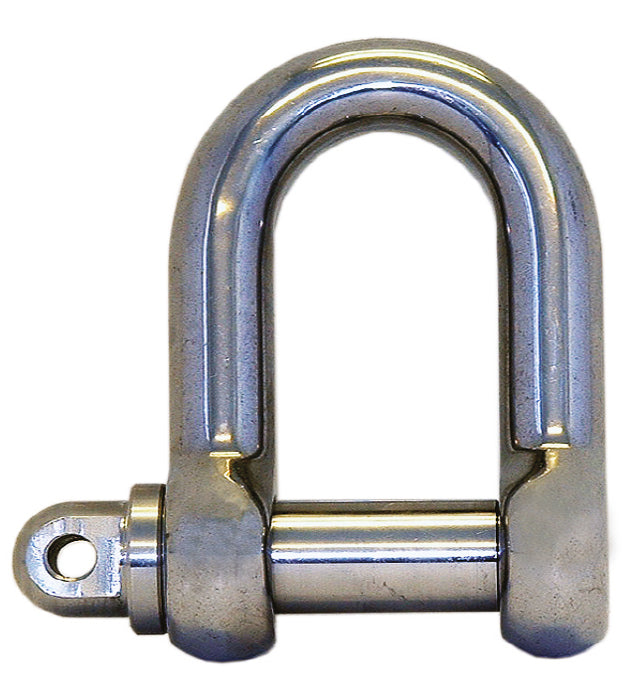

SSDA Stainless Steel 316 Screw Pin D Shackle
Load rated 316 stainless steel D Shackle with A Type screw pin.
| Code | WLL [kg's] | Body d1 [mm] | Pin d2 [mm] | Inside L [mm] | Jaw w [mm] | Weight [kg/pc] |
| SSD0.13A | 130 | 4 | 4 | 16 | 8 | 0.007 |
| SSD0.2A | 200 | 5 | 5 | 20 | 10 | 0.013 |
| SSD0.325A | 325 | 6 | 6 | 25 | 13 | 0.024 |
| SSD0.5A | 500 | 8 | 8 | 32 | 16 | 0.053 |
| SSD0.8A | 800 | 9.5 | 9.5 | 38 | 19 | 0.097 |
| SSD1A | 1000 | 11 | 11 | 44 | 22 | 0.15 |
| SSD1.25A | 1250 | 12.7 | 12.7 | 52 | 26 | 0.23 |
| SSD1.66A | 1660 | 14.3 | 16 | 58 | 29 | 0.45 |
| SSD2.33A | 2330 | 16 | 19 | 64 | 32 | 0.58 |
| SSD3.5A | 3500 | 19 | 22.2 | 76 | 38 | 1.00 |
| SSD4.5A | 4500 | 22.2 | 25.4 | 88 | 44 | 1.90 |
| SSD5.5A | 5500 | 25.4 | 28.6 | 102 | 51 | 2.90 |
| SSD6.5A | 6500 | 28.6 | 31.8 | 114 | 57 | 3.1 |
| SSD7.5A | 7500 | 31.8 | 34.9 | 128 | 64 | 4.35 |
| SSD9A | 9000 | 34.9 | 38 | 140 | 70 | 5.3 |
