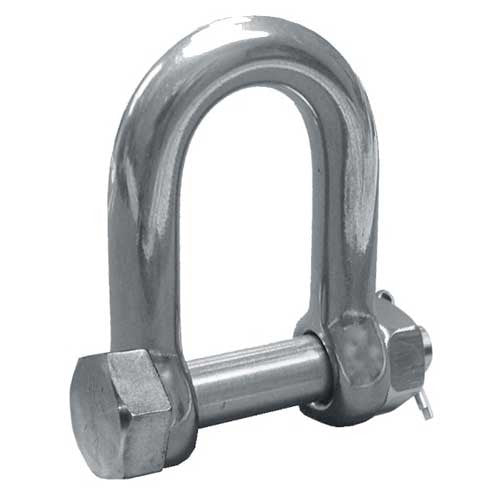

SSDE Safety Pin D Shackle
Load rated D-Shackles with E Type safety pin.
| Code | WLL [tonnes] | Body d1 [mm] | Pin d2 [mm] | Inside L [mm] | Jaw w [mm] | Weight [kg/pc] |
| SSD0.35E | 0.35 | 6 | 6 | 25 | 13 | 0.05 |
| SSD0.5E | 0.5 | 8 | 8 | 32 | 16 | 0.08 |
| SSD0.8E | 0.8 | 9.5 | 10 | 38 | 19 | 0.14 |
| SSD1E | 1.00 | 11 | 12 | 44 | 22 | 0.21 |
| SSD1.25E | 1.25 | 12.7 | 12 | 52 | 26 | 0.33 |
| SSD1.8E | 1.80 | 14.3 | 16 | 58 | 29 | 0.59 |
| SSD2.8E | 2.80 | 16 | 20 | 64 | 32 | 0.76 |
| SSD3.3E | 3.30 | 19 | 22 | 76 | 38 | 1.18 |
| SSD4.5E | 4.50 | 22 | 24 | 88 | 44 | 1.75 |
| SSD5E | 5.00 | 25.4 | 27 | 100 | 50 | 2.60 |
