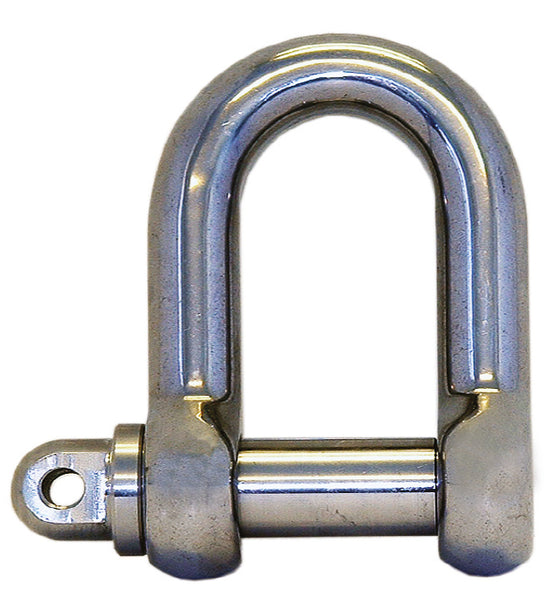

SSDA Stainless Steel 316 Screw Pin D Shackle

SSDA Stainless Steel 316 Screw Pin D Shackle

Load rated 316 stainless steel D Shackle with A Type screw pin.

SSDA Stainless Steel D Shackle
Code WLL [kg's] Body d1 [mm] Pin d2 [mm] Inside L [mm] Jaw w [mm] Weight [kg/pc]
SSD0.13A 130 4 4 16 8 0.007
SSD0.2A 200 5 5 20 10 0.013
SSD0.325A 325 6 6 25 13 0.024
SSD0.5A 500 8 8 32 16 0.053
SSD0.8A 800 9.5 9.5 38 19 0.097
SSD1A 1000 11 11 44 22 0.15
SSD1.25A 1250 12.7 12.7 52 26 0.23
SSD1.66A 1660 14.3 16 58 29 0.45
SSD2.33A 2330 16 19 64 32 0.58
SSD3.5A 3500 19 22.2 76 38 1.00
SSD4.5A 4500 22.2 25.4 88 44 1.90
SSD5.5A 5500 25.4 28.6 102 51 2.90
SSD6.5A 6500 28.6 31.8 114 57 3.1
SSD7.5A 7500 31.8 34.9 128 64 4.35
SSD9A 9000 34.9 38 140 70 5.3
